fondo de aislamiento de calefacción por suelo radiante
hydronic underfloor heating Clypso

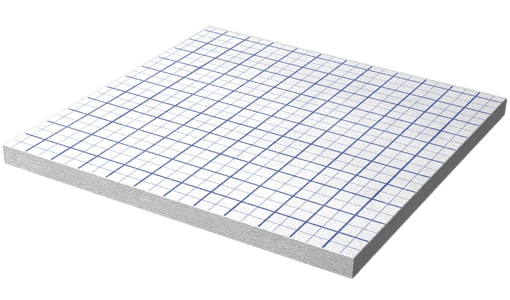

Clypso Insulation


Warmup Clypso Insulation is high quality thermal insulation with a conductivity of 0.022 W/mk

Key Benefits

icon

Gridwork design

The laminated insulation cover features an innovative gridwork pattern to help speed-up the installation process.

icon

Lightweight and durable

Constructed using lightweight EPS makes boards easy to handle.

icon

Woven cover

Insulation cover is woven to deliver extra security for retention of the pipe. .

hydronic underfloor heating Clypso

It is made from a PIR (polyisocyanurate) foam, which has zero Ozone depletion potential (ODP). Its blowing agents are CFC/HCFC free, which would otherwise potentially damage the atmosphere. The product has a BRE green guide rating of A.

The rigid PIR foam core is faced with a tough gridded woven aluminium facing to both sides, used to retain the pipe in position via the pipe clip.Compressive strength when tested to BS EN: 826 exceeds 160KPa. The insulation boards are 2.4m x 1.2m and come in a thickness range of 25mm to 100mm.

The Clypso Insulation is suitable for the Clypso and the Silva system.

You may also be interested in:

Tubos de calefacción por suelo radiante de Warmup

Pipes

Select from a choice of 3 pipe types; PEX-A, PE-RT and PE-RT/AL/PE-RT – tailored to your specific installation and budget.

Colector de calefacción por suelo radiante

Manifold

Our Manifold is manufactured from stainless steel and provides water regulation for up to 12 underfloor heating circuits.

centro de control de suelo radiante hidrónico

Control Center

All hydronic systems require a control centre that works with the thermostats and heat source, such as a boiler or heat pump.

Termostato programable monitor de energía 3iE

Thermostat

Choosing the correct control system is crucial in ensuring that your heating system works in the most efficient way.
