manifold isolation valves

Manifold S3 Isolation Valves


The WHS-M-S3-VALVES kit allow for the manifold on your underfloor heating system to easily be isolated from the primary circuit.

Key Benefits

icon

Versatile

Connects the manifold to either 1” G Male or 22mm copper and plastic primary supplies

icon

Easy mounting

1” G Union allows for the valves to be correctly orientated every time

icon

Colour Coded

The red and blue valve handles allow for easy indication of the flow and return

manifold isolation valves

Colour-Coded for Ease of Use

The kit has been specified to fit the WHS-M-S3-XX manifold range when equipped either with or with out the WHS-MS3-MIX mixing unit. With the WHS-M-S3-VALVES isolated, the manifold can be filled, drained, pressure tested etc, without affting the primary circuit.

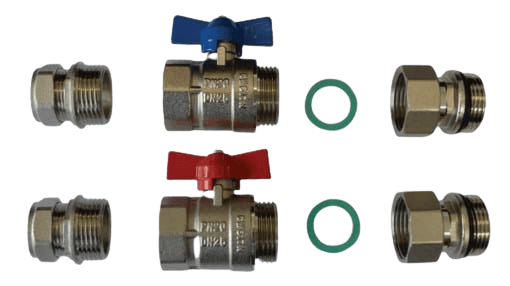

Each of the valves is supplied in three pieces for ease of use and versatility. The 1” union screws into the manifold or mixing unit, allowing the red or blue valve handles to be correctly orientated and the optional 22mm adaptor allows the valves to connect to either 1” G Male or 22mm primary supplies.
